Twist Rinse Cage

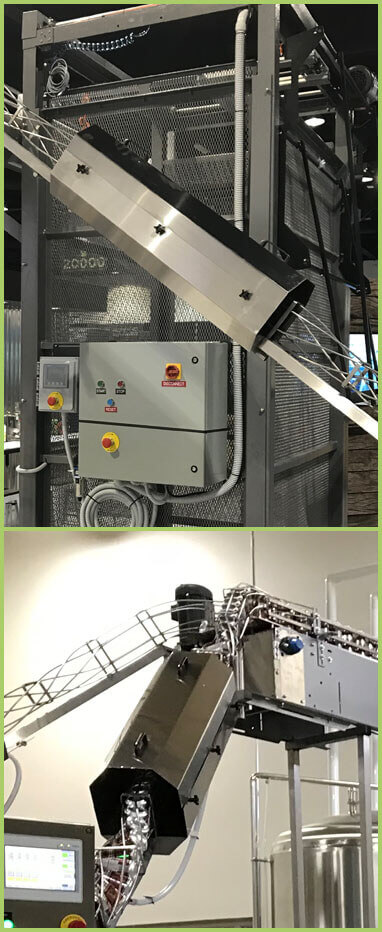

The Inline Packaging system  Twist Rinse can rinser integrates with our Can Depalletizers, Custom Height Depalletizers and our new Mobile Depalletizers. The twist rinse cages invert the cans as they come off the conveyor from the depalletizer. Water is used to rinse particles out of the cans prior to re-inverting before filling. Twist rinse cages work well with canning lines running up to 120 cans per minute because faster speeds don’t allow enough time to drain water from the cans before re-inverting.
Standard Features:
Integrates with all canning lines running up to 120 CPM
Available in multiple can sizes
Easy swap out to change sizes
Guide rails made from 1/4″ stainless rod
Stainless enclosure with easy access to the cage
Can be configured straight off the conveyor or off to the side for tight spaces
Standard Sizes (Custom Sizes are Available):
8 oz
10 oz
10 oz sleek
12 oz sleek
12 oz
16 oz
19.2 oz

250 ml
330 ml
375 ml
400 ml
440 ml
473 ml
500 ml
568 ml

Check out the “NEW” Dual Twist Rinse Cage. Click here…

Can Twist Options
There are other options for turning cans upside down. The Carleton Helical can turner is available for confined spaces and specialty needs such as printing on the bottom of the can. See the video below.

Ionized air rinsers are recommended for all lines running at 110 cans per minute or above. See the Ionized Air Rinse here…

Twist Rinse Video:

Carleton Helical Can Turner Video:
