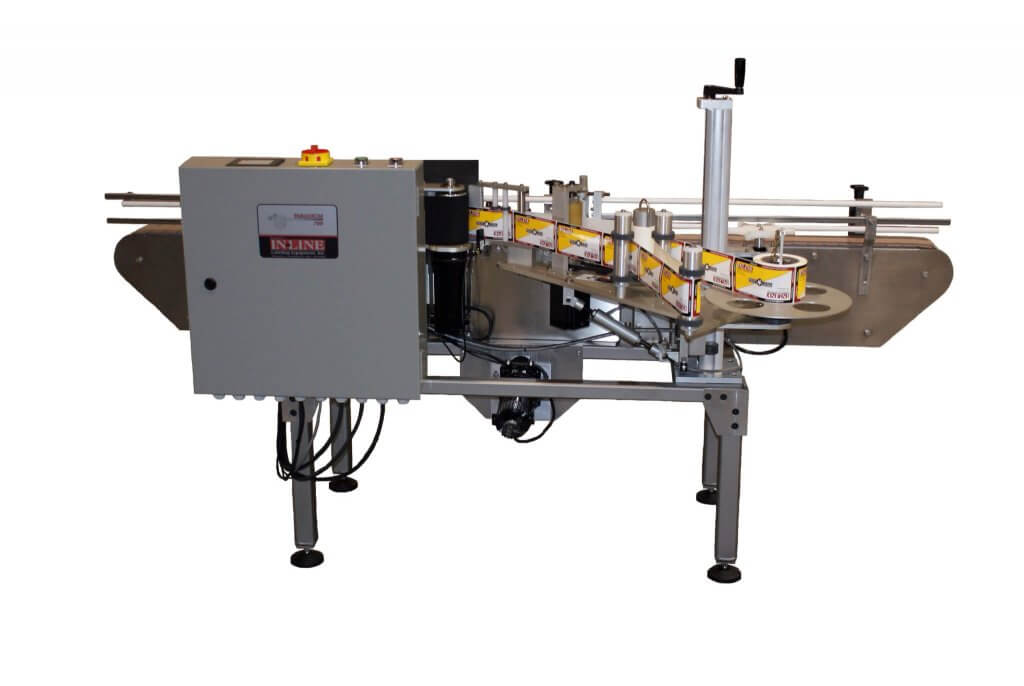

The Paradigm 700 is a completely new shift from current designs. It can be ordered as one configuration now and easily changed in the future by replacing or adding bolt-on parts. The conveyor height, width, and length can be reconfigured, along with the direction of the machine (left hand or right hand) and one of three labeling styles – wrap, spin-in-place, or trunnion style. Changing your line layout or the packages you run does not make the labeler you already purchased obsolete.
The machine is loaded with nice features: all stainless steel and aluminum construction, off-the-shelf components rather than proprietary boards and motors, a stepper-driven applicator and a standard touchscreen interface on all models. All speeds on every 700 are synchronized together to avoid common labeling errors, and our Autoset bottle measurement and recipe system ensure easy setups and changeovers.
The Paradigm is capable of accuracy to +/- 1/32” depending on the product.
The Paradigm Label Applicator is a fully automatic applicator capable of applying labels to a variety of products. Products to be labeled are sensed as they pass a photo-eye. The photo-eye initiates a signal that is transmitted to the PLC. After a fully adjustable delay, the label is dispensed onto the passing product. For flat panels a wipe brush completes label application by wiping down the label onto the product. For round products, the bottle spins between a powered belt and back compression pad, wrapping the label onto the round container. Controls consist of a main power switch, and a touchscreen operator interface which provides information and access to the label delay, label gap delay, batch count, speeds and more.
Precision and efficiency – the winning In-Line Packaging Systems recipe! A labeler from In-Line means you will have the reliability and speed that only we can deliver. All our machines are backed with a one-year warranty, and we are available to answer questions and troubleshoot. We don’t leave you cold after the purchase. We develop a relationship with our customers and are here to help them as their business grows and changes. So, you can be confident when you partner with In-Line that you are receiving not only quality products, but quality service as well.
