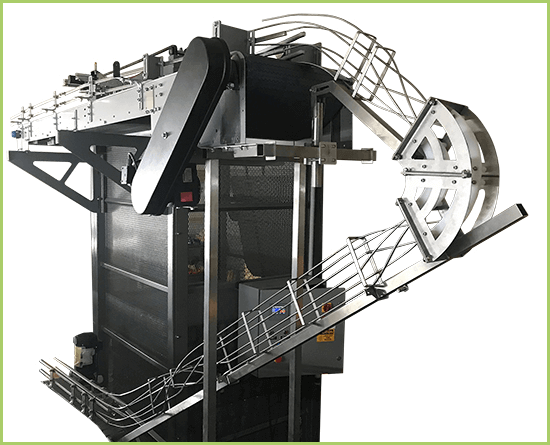

Zero Footprint Twist Rinse

The Zero Footprint Rinser makes it possible to run a smaller footprint canning line than ever before. This pre-fill can rinser is an easy add-on to your depal or conveyance system, saves considerable space and was designed with the specific goal of saving space in smaller production spaces without sacrificing the power of a full canning line.

The ZFR is configured with one 90˚ section allowing cans to reverse direction prior to rinsing. Can be mounted straight or at a 90˚ angle. The rinser is made of stainless steel and is recommended for line speeds up to 120 cans per minute. It can be mounted to all standard canning lines and is available in multiple can sizes.

Standard Features:

  • Available in multiple can sizes
  • Guide rails made from 1/4″ stainless rod
  • Stainless enclosure with easy access to the cage
  • Takes up significantly less space than a standard rinse cage
  • Designed with smaller breweries in mind to get a full-on canning line without the full-sized footprint
  • Integrates with all canning lines running up to 120 CPM

Currently Available Cage Sizes:

12 oz16 oz

Available Soon:

8 oz10 oz10 oz sleek12 oz sleek19.2 oz 250 ml330 ml375 ml400 ml440 ml473 ml500 ml568 ml
